EICP Soil Improvement: One-Phase-Low-pH Method

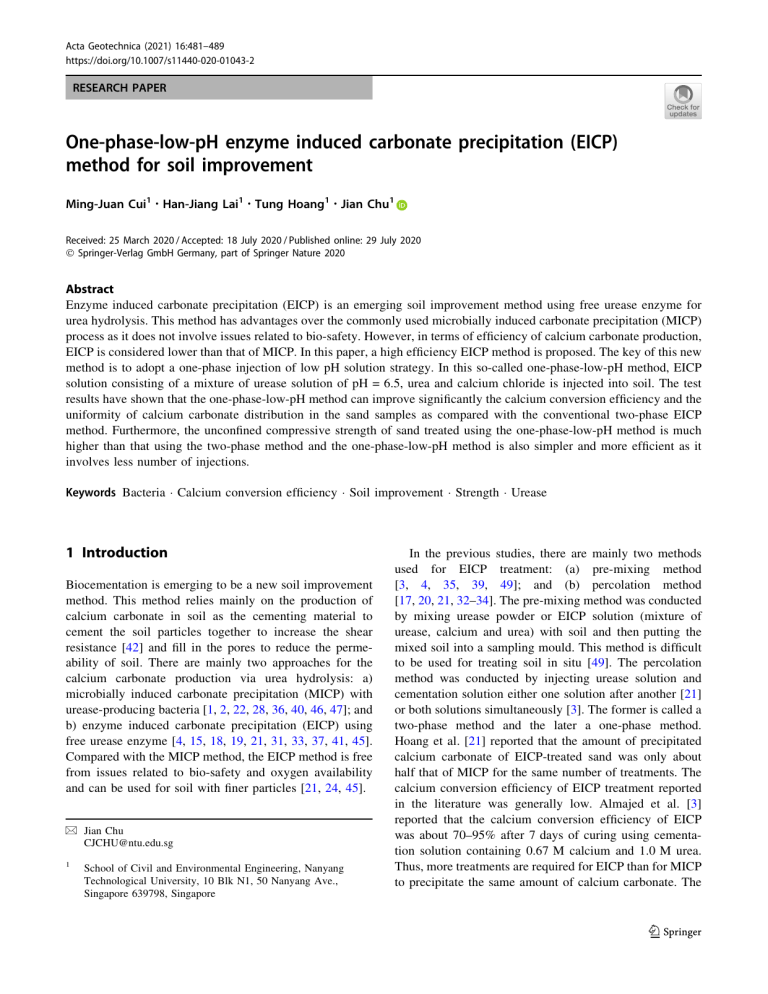

Acta Geotechnica (2021) 16:481–489
https://doi.org/10.1007/s11440-020-01043-2
(0123456789().,-volV)(0123456789().
,- volV)
RESEARCH PAPER
One-phase-low-pH enzyme induced carbonate precipitation (EICP)
method for soil improvement
Ming-Juan Cui1 • Han-Jiang Lai1 • Tung Hoang1 • Jian Chu1
Received: 25 March 2020 / Accepted: 18 July 2020 / Published online: 29 July 2020
Ó Springer-Verlag GmbH Germany, part of Springer Nature 2020
Abstract
Enzyme induced carbonate precipitation (EICP) is an emerging soil improvement method using free urease enzyme for
urea hydrolysis. This method has advantages over the commonly used microbially induced carbonate precipitation (MICP)
process as it does not involve issues related to bio-safety. However, in terms of efficiency of calcium carbonate production,
EICP is considered lower than that of MICP. In this paper, a high efficiency EICP method is proposed. The key of this new
method is to adopt a one-phase injection of low pH solution strategy. In this so-called one-phase-low-pH method, EICP
solution consisting of a mixture of urease solution of pH = 6.5, urea and calcium chloride is injected into soil. The test
results have shown that the one-phase-low-pH method can improve significantly the calcium conversion efficiency and the
uniformity of calcium carbonate distribution in the sand samples as compared with the conventional two-phase EICP
method. Furthermore, the unconfined compressive strength of sand treated using the one-phase-low-pH method is much
higher than that using the two-phase method and the one-phase-low-pH method is also simpler and more efficient as it
involves less number of injections.
Keywords Bacteria Calcium conversion efficiency Soil improvement Strength Urease
1 Introduction
Biocementation is emerging to be a new soil improvement
method. This method relies mainly on the production of
calcium carbonate in soil as the cementing material to
cement the soil particles together to increase the shear
resistance [42] and fill in the pores to reduce the permeability of soil. There are mainly two approaches for the
calcium carbonate production via urea hydrolysis: a)
microbially induced carbonate precipitation (MICP) with
urease-producing bacteria [1, 2, 22, 28, 36, 40, 46, 47]; and
b) enzyme induced carbonate precipitation (EICP) using
free urease enzyme [4, 15, 18, 19, 21, 31, 33, 37, 41, 45].
Compared with the MICP method, the EICP method is free
from issues related to bio-safety and oxygen availability
and can be used for soil with finer particles [21, 24, 45].
& Jian Chu
[email protected]
1
School of Civil and Environmental Engineering, Nanyang
Technological University, 10 Blk N1, 50 Nanyang Ave.,
Singapore 639798, Singapore
In the previous studies, there are mainly two methods
used for EICP treatment: (a) pre-mixing method
[3, 4, 35, 39, 49]; and (b) percolation method
[17, 20, 21, 32–34]. The pre-mixing method was conducted
by mixing urease powder or EICP solution (mixture of
urease, calcium and urea) with soil and then putting the
mixed soil into a sampling mould. This method is difficult
to be used for treating soil in situ [49]. The percolation
method was conducted by injecting urease solution and
cementation solution either one solution after another [21]
or both solutions simultaneously [3]. The former is called a
two-phase method and the later a one-phase method.
Hoang et al. [21] reported that the amount of precipitated
calcium carbonate of EICP-treated sand was only about
half that of MICP for the same number of treatments. The
calcium conversion efficiency of EICP treatment reported
in the literature was generally low. Almajed et al. [3]
reported that the calcium conversion efficiency of EICP
was about 70–95% after 7 days of curing using cementation solution containing 0.67 M calcium and 1.0 M urea.
Thus, more treatments are required for EICP than for MICP
to precipitate the same amount of calcium carbonate. The
123
482
Acta Geotechnica (2021) 16:481–489
EICP based soil improvement methods can be much
improved if the efficiency of the calcium carbonate production in EICP can be increased.
In this paper, a one-phase-low-pH method was adopted
to improve the efficiency of calcium carbonate production
in the EICP process. To verify the effectiveness of the onephase-low-pH method hereafter, a comparative study
between sand columns treated using one-phase-low-pH and
two-phase methods was conducted. The data obtained from
this study were also compared with published data using
EICP-based method. The scanning electron microscopy
(SEM) images were examined to reveal the microscopic
difference between the EICP- and MICP-treated sand.
one-phase-low-pH MICP or EICP method is as follows: (1)
preparing MICP (or EICP) solution by mixing the bacterial
solution (pH = 6.5) [or urease solution (pH = 6.5)] with CS
(2.0 M) and distilled water using a volume ratio of bacterial
(or urease) solution: CS: distilled water = 0.3: 0.5: 0.2 to
achieve a CS final concentration of 1.0 M; (2) injecting
MICP (or EICP) solution into a sand column immediately
and incubating the sand at room temperature (25 ± 1 °C) for
24 h; and (3) repeating the above steps until achieving the
required number of treatments. For comparison, the twophase method was also used to treat sand columns using
either EICP or MICP by injecting one pore volume of bacterial (or urease) solution, followed by injecting the same
volume of CS of 1.0 M after 6 h of fixation time for bacteria
(or urease).
2 Materials and methods
2.3 Properties tests
2.1 Materials
In this study, Sporosarcina pasteurii (OD600 = 3.6 ± 0.3,
urease activity UA = 20 ± 1 U/mL) was used for MICP
treatment and urease (UA = 40 ± 1 U/mL) extracted from
bacteria via ultrasonication was used for EICP treatment.
750 Watt ultrasonic processor (VCX 750) with 20 kHz in
frequency was used in this study to extract urease from
bacteria through the ‘‘run-cool’’ cycle. During the extraction, the temperature of bacterial solution was kept lower
than 35 °C. The soil used was clean Ottawa 20–30 sand
(Gs = 2.65, D50 = 0.72 mm, Cu = 1.2, emax = 0.742 and
emin = 0.502). Equal mole of CaCl2 and urea were used as
cementation solution which will be termed as CS hereafter.
Titration method was adopted to measure the calcium
concentration of the effluent after each treatment using a
standard solution of EDTA (ethylenediaminetetraacetic
acid) [9]. After completing the EICP or MICP treatment,
all samples were flushed by distilled water at least 5 cycles
to remove the residual substances. The samples were then
saturated and used for unconfined compression (UC) tests
to measure the unconfined compressive strength under a
loading rate of 1.0 mm/min [5]. After the UC test, all
fractions of the tested sample were collected and dried in
an oven with a temperature of 105 °C. The acid dissolving
method [12, 44] was adopted to determine the Calcium
Carbonate Content (CCC) of each sample. Scanning electron microscopy (SEM) tests were also conducted.
2.2 Sand specimen treatment
The test program is summarised in Table 1. Poly vinyl
chloride (PVC) tube was used as the mould to prepare sand
specimens of 50 mm in diameter and 100 mm in height. All
tests were triplicated for repeatability. The one-phase-lowpH injection method [7] was adopted in this study for both
MICP and EICP treatment. Hydrochloric acid (HCl) with a
concentration of 2.0 M was used to adjust the pH of bacterial
or urease solution. The procedure for the application of the
3 Results and discussion
3.1 Comparison of one-phase-low-pH and twophase method
Figure 1 shows the results of EICP and MICP treatment for
sand using either one-phase-low-pH or two-phase methods.
It can be seen that the Calcium Conversion Efficiency
Table 1 Sand column treatment test details
Test
Injection method
Bacteria volume ratio VRa
MICP-2b
Two-phase
1.0
EICP-2
MICP-1
Urease volume ratio VR
Calcium concentration, M
Number of treatments, N
1.0
1, 2, 3, 4
1.0
1, 2, 3, 4
1.0
One-phase-low-pH
EICP-1
a
0.3
0.3
The bacteria or urease volume ratio VR is the ratio of the injected bacteria or urease to the pore volume of sand column
MICP-2 or EICP-2 refers two-phase MICP or EICP method and MICP-1 or EICP-1 one-phase-low-pH MICP or EICP method
b
123
Acta Geotechnica (2021) 16:481–489
(CCE) (Fig. 1a), which is the ratio of calcium consumed to
total calcium supplied for each treatment, and Calcium
Carbonate Content (CCC) (Fig. 1b) of sand treated by
EICP and MICP using the one-phase-low-pH method were
higher than that using the two-phase method. However, the
amount of bacteria or urease for each injection using twophase method is greater than that using one-phase-low-pH
method. The low CCE and CCC for the two-phase method
are possibly due to the fact that most of the injected bacteria or urease would be flushed out during the CS
injection.
In general, there are three mechanisms for the bacteria
or urease to be retained in soil: (1) the adsorption capacity
of bacteria or urease; (2) the filtration capacity of soil; and
(3) the retention ability of other media such as the precipitated calcium carbonate. The adsorption capacity of
bacterial cells or urease enzymes depends on its own
characteristics. The bacterial cells are considered as negatively charged [50] and thus will be attracted to the soil
483
particle surface. The filter capacity of soil relies on its
physical properties of the soil (e.g., grain sizes and particle
gradation) and the sizes of bacterial cells. Soil with smaller
particle sizes and good gradation has a better filter capacity. The larger bacterial cells are more likely to be trapped
in soil. For the one-phase-low-pH method, all three
mechanisms will contribute to the retention of bacterial
cells or urease enzymes. For the two-phase method, the
bacterial cells or urease enzymes are retained through the
first two mechanisms during the injection of bacterial or
urease solution. However, during the injection for CS, the
seepage force causes the flushing out of some bacterial
cells or urease enzymes.
Moreover, for the tests using the two-phase method, the
CCE for the EICP treatment (Test EICP-2) is much lower
than that for the MICP treatment (Test MICP-2). However,
when the one-phase-low-pH method is used, the CCE are
high for both the EICP treatment (Test EICP-1) and MICP
treatment (Test MICP-1). The possible reason for the low
Fig. 1 Comparison of EICP and MICP treatments of sand using either the two-phase or the one-phase-low-pH method: a calcium conversion
efficiency (CCE) versus number of treatments; b calcium carbonate content (CCC) versus number of treatments; c calcium carbonate content
(CCC) in each test after 4 treatments; and d unconfined compressive strength versus number of treatments
123
484
Acta Geotechnica (2021) 16:481–489
Fig. 2 Comparison of Calcium carbonate content (CCC) in sand treated by EICP and MICP using the one-phase-low-pH method: a CCC versus
number of treatments; and b CCC distribution at different positions within a treated sand column
Fig. 3 Comparison of the relationship between unconfined compressive strength and calcium carbonate content for EICP- and MICPtreated sand columns using one-phase-low-pH method
CCE for the two-phase method using the EICP treatment is
that more (or higher proportion of) urease would be flushed
out of the sand column during the CS injection. This can be
explained by the following two reasons: (1) the attachment
of urease to sand grains is weaker than bacterial cells and
(2) the sizes of urease are smaller than the sizes of bacterial
cells and thus the retention for urease is lower.
The CCC distribution of EICP- and MICP-treated sand
using either one-phase-low-pH or two-phase methods is
shown in Fig. 1c. It can be seen that the CCC distribution of
EICP and MICP treatment using one-phase-low-pH method
is uniform, but non-uniform for the two-phase method. The
CCC at the top (i.e., the region close to injection point) of the
sand column is the lowest for both EICP and MICP treatment
using two-phase method. The different distribution patterns
of calcium carbonate for both methods indicate that the onephase-low-pH method contributes to improve the uniformity
123
of calcium carbonate distribution. Thus, the unconfined
compressive strength of sand column treated by EICP and
MICP using the one-phase-low-pH method is higher than
that using the two-phase method (Fig. 1d).
In conclusion, the higher CCE and more uniform distribution of calcium carbonate obtained from tests using the
one-phase-low-pH method produce higher unconfined
compressive strength compared with the two-phase method
for both the MICP and EICP treatments. However, it has to
be pointed out that not all the one-phase methods will
work. This is because MICP (or EICP) will take place as
soon as the bacterial (or urease) solution is mixed with the
CS solution. This will cause clogging at the injection side
and prevent the transmission of the CS solution in the soil,
resulting in non-uniform of calcium carbonate distribution
[19, 26, 27, 48]. However, this difficulty can be overcome
by using low pH (6.5) bacterial or urease solutions as
suggested by Cheng et al. [7] or using low activity bacterial
solution as demonstrated by Chu and Wen [11].
3.2 Comparison of EICP and MICP treatment
using the one-phase-low-pH method
Figure 2a shows a comparison of the CCC obtained after
each of EICP and MICP treatment of sand columns
using the one-phase-low-pH method in different number
of treatments. The CCC obtained in both treatments are
almost identical. It can be seen that the CCC increases
with the increase in the number of treatments for both
the EICP- and MICP-treated sand. The calcium in the
effluent of each EICP and MICP treatment were ignorable, meaning that the injected calcium solution for each
treatment could be converted to calcium carbonate
almost completely after 24 h incubation via the one-
Acta Geotechnica (2021) 16:481–489
485
Fig. 4 Comparison of SEM images of sand treated by EICP and MICP using the one-phase-low-pH method: a EICP-1 at CCC= 2.4% after one
treatment; b MICP-1 at CCC= 2.3% after one treatment; c EICP-1 at CCC= 4.4% after two treatments; d MICP-1 at CCC= 4.3% after two
treatments; e EICP-1 at = 8.4% after four treatments; f MICP-1 = 8.7% after four treatments
phase-low-pH method. Moreover, the distribution of
CCC in EICP- and MICP-treated sand columns is similar
and uniform (Fig. 2b).
The unconfined compressive strength (quc) of EICP- and
MICP-treated sand columns is plotted versus calcium carbonate content (CCC) in Fig. 3. As expected, quc increases
with increasing in CCC for both. However, quc obtained
from the EICP treatment is greater than that from the MICP
treatment for the same CCC. Similar observations have
also been reported by Almajed et al. [4] and Hoang et al.
[21].
One explanation for the above difference in the quc
versus CCC relationships was given by Hoang et al. [21] as
the difference in the deposition location of the precipitated
calcium carbonate. However, this deposition difference is
not significant in the current study. SEM images of both the
EICP- and MICP-treated sand using the one-phase-low-pH
method at different CCC are compared in Fig. 4. It can be
seen that the calcium carbonate crystals were formed on
sand particles in both cases. Two major differences have
been observed from the SEM images. Firstly, the morphology of the calcium carbonate crystals formed in the
123
486
Acta Geotechnica (2021) 16:481–489
Fig. 5 Comparison of one-phase-low-pH EICP with published EICP treatments for sand: a relationship between calcium carbonate content
(CCC) and number of treatments N; and b relationship between unconfined compressive strength quc and CCC; c relationship between
unconfined compressive strength quc and number of treatments N
two different treatments is different. For EICP treatment,
mainly rhombic calcium carbonate crystals are observed
(Fig. 4a, c, e), whereas for MICP treatment, both rhombic
and spherical calcium carbonate crystals dominate
(Fig. 4b, d, or f). Both types of calcium carbonate crystals
have
been
observed
by
other
researchers
[1, 8, 14, 23, 29, 38]. By examining the crystals in Fig. 4a
more closely, it can be seen that each rhombic crystal
consists of a number of smaller cubic or prismatic shaped
calcium carbonate crystals, suggesting the rhombic crystals
were more closely related to calcite as also pointed by
Declet et al. [13]. Gebauer et al. [16] have reported that
calcite is a more stable polymorph of calcium carbonate
and likely possesses a higher binding strength in the clusters than other types. Khodadadi et al. [25] also reported
that the less stable calcium carbonate mineral phases may
not be as effective at improving the mechanical properties
of the soil. Furthermore, the surface of the spherical crystals is smooth and thus its contribution to interlocking
might not be as high as the rhombic type of crystals.
123
Secondly, the sizes of calcium carbonate crystals are also
different. The sizes of the calcium carbonate crystals
induced by EICP are smaller than that by MICP at the
similar CCC, as shown by a comparison of Fig. 4c with
Fig. 4d, which is consistent with the finding of Nafisi et al.
[30]. The difference in the sizes of the crystals is related to
the sizes of bacterial cells or urease enzymes and the
crystallisation rate of calcium carbonate. As the sizes of
bacterial cell (within the range of 500–3000 nm [43]) are
much bigger than those of urease enzyme (about 12 nm
[6]), the calcium carbonate crystals formed with bacterial
cells as nuclei [10] in MICP are much bigger than those
with urease enzyme as nuclei in EICP. In terms of crystallisation rate, as the urea hydrolysis rate in EICP is
quicker, but shorter than that in MICP, the crystallisation
rate of calcium carbonate by EICP treatment would be
faster and the duration would be shorter than that of MICP.
Consequently, the calcium carbonate crystals formed during each EICP treatment (Fig. 4c) would be smaller. If the
same amount of calcium carbonate content (CCC) is
Acta Geotechnica (2021) 16:481–489
487
Table 2 Summary of the published EICP methods
Urease
Treatment method
Treatment solution
Treatment
intervals
Samples
for UC test
References
Jack bean
Percolation method. Add EICP solution from top of sand
column
EICP solution: 0.67 M
CaCl2, 1.0 M urea, 3 g/
L enzyme
7 days
Oven-dried
at 50 °C
Almajed
et al. [3]
3 days
Oven-dried
at 40 °C
Almajed
et al. [4]
Premixing method. Mix sand with EICP solution
Selfextracted
from
bacteria
Circulated-percolation process including 4 steps: (1)
circulated percolation of urease (3 h); (2) drain off the
pore volume urease; (3) circulated percolation of CS
(9–12 h); (4) flush with deionized water (2 h), then drain
off all liquid (10 h)
Urease: 25.4 mM urea/
min; CS: 0.3 M CaCl2,
0.3 M urea
24–27 h
Oven-dried
at 50 °C
for 48 h
Hoang
et al.
[20, 21]
Jack bean
Inject EICP solution through the injection tube preembedded in sand
EICP solution: 1.0 M
CaCl2, 1.0 M urea,
15 g/L urease
24 h
Wet
Neupane
et al.
[33]
Selfextracted
from jack
bean
Pre-mixing method including 4 steps: (1) mixing jack bean
extract with urea (3 days); (2) adding calcium to yield
calcite solution: (3) mixing sand with calcite solution and
compacting into mould; (4) air curing
–
3 days
Wet
Park et al.
[37]
Jack bean
Pre-mixing method including 3 steps: (1) pluviating sand
into mould after well-mixing with urease powder; (2)
evacuating and applying 50 kPa confining pressure on
sand sample; (3) injecting CS solution
CS: (1) 0.5 M CaCl2,
0.5 M urea; (2) 1.0 M
CaCl2, 1.0 M urea
24 h
Dry
Yasuhara
et al.
[49]
achieved in each EICP and MICP treatment, then the
number of calcium carbonate crystals will be more. In
other words, there will be more contact points for cementation in EICP than those in MICP for the same CCC. As
biocementation of calcium carbonate between the adjacent
soil particles contributes to enhance the strength and
stiffness properties of soil [22], the more cementation
points of calcium carbonate will produce higher strength
for EICP. In summary, the difference in strength
enhancement of sand treated by EICP and MICP could also
be explained by the differences in the properties of the
calcium carbonate crystals and the number and sizes of the
crystals.
3.3 Comparison of one-phase-low-pH EICP
with published EICP treatment methods
The calcium carbonate content (CCC) and unconfined
compressive strength (quc) versus number of treatments
obtained from the one-phase-low-pH EICP method in this
study is compared with those from the published EICP
methods [3, 4, 20, 21, 33, 37, 49], as shown in Fig. 5.
Information about the published EICP methods is summarised in Table 2. It can be seen from Fig. 5a that the
calcium carbonate production in this study is higher compared with three others under the same number of treatments
[3, 4, 20, 21, 49]. Figure 5b shows that the quc obtained from
this study is similar to the results of Almajed et al. [3, 4] and
Hoang et al. [20, 21], but higher than the cases in the
published studies [33, 37, 49] under the same CCC. As the
number of treatments required is less in the one-phase-lowpH EICP method to achieve the same CCC, it implies that for
the same number of treatments, the quc will be higher. This is
indeed the case as shown in Fig. 5c. However, it needs to be
pointed out that quc is also affected by other factors such as
concentration of bacterial or cementation solutions used and
thus the data in Fig. 5b and c are scattered.
4 Conclusions
In this paper, a one-phase-low-pH EICP method was proposed to improve the efficiency of calcium carbonate
production for EICP. In this method, the EICP-solution
consisting of a mixture of low pH urease solution (pH =
6.5) and cementation solution (calcium chloride and urea)
is injected together into soil. The following conclusions can
be drawn from this study:
1. A higher calcium conversion efficiency and more
uniform distribution of calcium carbonate in the soil
specimens treated was achieved using the one-phaselow-pH EICP method compared with that using a twophase method, and thus producing higher unconfined
compressive strength.
2. When the one-phase-low-pH method is adopted, the
efficiency of calcium carbonate production for EICP
and MICP is almost the same. The injected calcium of
123
488
each treatment could be converted almost completely
to calcium carbonate after 24 h incubation. The
unconfined compressive strength of the sand column
with EICP treatment is greater than that of MICP
treatment for the same calcium carbonate content. This
can be explained by the differences in the types of
calcium carbonate crystals and the sizes of the crystals.
3. Compared with the published EICP treatment methods,
the one-phase-low-pH method proposed in this study is
more effective as it results in a higher shear strength
and simpler as the number of injections is reduced by
half given the other conditions the same.
Acknowledgements The authors would like to thank Dr Xiaoniu YU
of Nanyang Technological University, Singapore, for the discussion
with him. The financial supports provided through Grant No.
MOE2015-T2-2-142 by the Ministry of Education, Singapore, and the
Grant No. SMI-2018-MA-02 by the Singapore Maritime Institute are
gratefully acknowledged. The first two authors would also like to
thank the support by the National Natural Science Foundation of
China (NSFC) (No. 51708243) and the China Postdoctoral Science
Foundation (Nos. 2016M600595, 2018M632862 and 2018T110769)
for the early stage of their research.
References
1. Al Qabany A, Soga K, Santamarina C (2012) Factors affecting
efficiency of microbially induced calcite precipitation. J Geotech
Geoenviron Eng 138(8):992–1001
2. Al Qabany A, Soga K (2013) Effect of chemical treatment used in
MICP on engineering properties of cemented soils. Géotechnique
63(4):331–339
3. Almajed A, Khodadadi TH, Kavazanjian E Jr (2018) Baseline
investigation on enzyme-induced calcium carbonate precipitation. J Geotech Geoenviron Eng 144(11):04018081. https://doi.
org/10.1061/(ASCE)GT.1943-5606.0001973
4. Almajed A, Khodadadi TH, Kavazanjian E Jr, Hamdan N (2019)
Enzyme induced biocementated sand with high strength at low
carbonate content. Sci Rep 9(1135):1–7. https://doi.org/10.1038/
s41598-018-38361-1
5. ASTM (American Society for Testing and Materials) D2166
(2013) Standard test method for unconfined compressive strength
of cohesive soil. ASTM International, West Conshohocken
6. Blakely RL, Zerner B (1984) Jack bean urease: the first nickel
enzyme. J Mol Catal 23:263–292
7. Cheng L, Shahin MA, Chu J (2019) Soil bio-cementation using a
new one-phase low-pH injection method. Acta Geotech
14:615–626
8. Cheng L, Shahin MA, Mujah D (2016) Influence of key environmental conditions on microbially induced cementation for soil
stabilization. J Geotech Geoenviron Eng 143(1):04016083
9. Choi SG, Park SS, Wu SF, Chu J (2017) Methods for calcium
carbonate content measurement of biocemented soils. J Mater Civ
Eng 29(11):06017015
10. Chu J, Ivanov V, Naeimi M, Stabnikov V, Liu HL (2014) Optimization of calcium-based bioclogging and biocementation of
sand. Acta Geotech 9:277–285
11. Chu J, Wen ZY (2015) Proof of concept: biocement for road
repair. In: Trans project reports 129
123
Acta Geotechnica (2021) 16:481–489
12. Cui MJ, Zheng JJ, Zhang RJ, Lai HJ, Zhang J (2017) Influence of
cementation level on the strength behaviour of bio-cemented
sand. Acta Geotech 12(5):971–986
13. Declet A, Reyes E, Suárez OM (2016) Calcium carbonate precipitation: a review of the carbonate crystallization process and
applications in bioinspired composites. Rev Adv Mater Sci
44:87–107
14. Fujita Y, Ferris FG, Lawson RD, Colwell FS, Smith RW (2000)
Subscribed content calcium carbonate precipitation by ureolytic
subsurface bacteria. Geomicrobiol J 17(4):305–318
15. Gao YF, He J, Tang XY, Chu J (2019) Calcium carbonate precipitation catalyzed by soybean urease as an improvement
method for fine-grained soil. Soils Found. https://doi.org/10.1016/
j.sandf.2019.03.014
16. Gebauer D, Völkel A, Cölfen H (2008) Stable prenucleation
calcium carbonate clusters. Science 322(5909):1819–1822
17. Handley-Sidhu S, Sham E, Cuthbert MO, Nougarol S, Mantle M,
Johns ML, Macaskie LE, Renshaw JC (2013) Kinetics of urease
mediated calcite precipitation and permeability reduction of
porous media evidenced by magnetic resonance imaging. Int J
Environ Sci Technol 10(5):881–890
18. Hamdan N, Kavazanjian E Jr (2016) Enzyme-induced carbonate
mineral precipitation for fugitive dust control. Géotechnique
66(7):546–555
19. He J, Gao YF, Gu ZX, Chu J, Wang LY (2020) Characterization
of crude bacterial urease for CaCO3 precipitation and cementation of silty sand. J Mater Civ Eng 32(5):04020071
20. Hoang T, Alleman J, Cetin B, Choi SG (2020) Engineering
properties of biocementation coarse- and fine-grained sand catalyzed by bacterial cells and bacterial enzyme. J Mater Civ Eng
32(4):04020030
21. Hoang T, Alleman J, Cetin B, Ikuma K, Choi SG (2019) Sand and
silty-sand soil stabilization using bacterial enzyme—induced
calcite precipitation (BEICP). Can Geotech J 56:808–822
22. Ivanov V, Chu J (2008) Applications of microorganisms to
geotechnical engineering for bioclogging and biocementation of
soil in situ. Rev Environ Sci Biotechnol 7(2):139–153
23. Ismail MA, Joer HA, Randolph MF, Meritt A (2002) Cementation of porous materials using calcite. Géotechnique
52(5):313–324
24. Jiang NJ, Yoshioka H, Yamamoto K, Soga K (2016) Ureolytic
activities of a urease-producing bacterium and purified urease
enzyme in the anoxic condition: implication for subseafloor sand
production control by microbially induced carbonate precipitation
(MICP). Ecol Eng 90:96–104
25. Khodadadi TH, Kavazanjian E, Bilsel H (2017) Mineralogy of
calcium carbonate in MICP-treated soil using soaking and
injection treatment methods. Geotech Front 2017:195–201
26. Mahawish A, Bouazza A, Gates WP (2018) Effect of particle size
distribution on the bio-cementation of coarse aggregates. Acta
Geotech 13(4):1019–1025
27. Martin KK, Khodadadi TH, Kavazanjian E Jr (2020) Enzymeinduced carbonate precipitation: scale-up of bio-cemented soil
columns. Geo-Congress 2020:96–103
28. Martinez BC, Dejong JT, Ginn TR, Montoya BM, Barkouki TH,
Hunt C, Tanyu B, Major D (2013) Experimental optimization of
microbial-induced carbonate precipitation for soil improvement.
J Geotech Geoenviron Eng 139:587–598
29. Mujah D, Cheng L, Shahin MA (2019) Microstructural and
geomechanical study on biocemented sand for optimization of
MICP process. J Mater Civ Eng 31(4):04019025
30. Nafisi A, Safavizadeh S, Montoya BM (2019) Influence of
microbe and enzyme-induced treatments on cemented sand shear
response. J Geotech Geoenviron Eng 145(9):06019008
31. Nam IH, Chon CM, Jung KY, Choi SG, Choi H, Park SS (2015)
Calcite precipitation by ureolytic plant (Canavalia ensiformis)
Acta Geotechnica (2021) 16:481–489
extracts as effective biomaterials. KSCE J Civ Eng
19(6):1620–1625
32. Nemati M, Voordouw G (2003) Modification of porous media
permeability, using calcium carbonate produced enzymatically
in situ. Enzyme Microb Technol 33(5):635–642
33. Neupane D, Yasuhara H, Kinoshita N, Ando Y (2015) Distribution of mineralized carbonate and its quantification method in
enzyme mediated calcite precipitation technique. Soils Found
55(2):447–457
34. Neupane D, Yasuhara H, Kinoshita N, Unno T (2013) Applicability of enzymatic calcium carbonate precipitation as a soilstrengthening technique. J Geotech Geoenviron Eng
139(12):2201–2211
35. Oliveira PJV, Freitas LD, Carmona JPSF (2017) Effect of soil
type on the enzymatic calcium carbonate precipitation process
used for soil improvement. J Mater Civ Eng 29(4):04016263
36. Pan XH, Chu J, Yang Y, Cheng L (2020) A new biogrouting
method for fine to coarse sand. Acta Geotech 15:1–16
37. Park SS, Choi SG, Nam IH (2014) Effect of plant-induced calcite
precipitation on the strength of sand. J Mater Civ Eng
26(8):06014017
38. Rong H, Qian CX, Li LZ (2012) Influence of molding process on
mechanical properties of sandstone cemented by microbe cement.
Constr Build Mater 28(1):238–243
39. Simatupang M, Okamura M (2017) Liquefaction resistance of
sand remediated with carbonate precipitation at different degrees
of saturation during curing. Soils Found 57(4):619–631
40. Song JY, Sim Y, Jang J, Hong WT, Yun TS (2020) Near-surface
soil stabilization by enzyme-induced carbonate precipitation for
fugitive dust suppression. Acta Geotech 15:1967–1980. https://
doi.org/10.1007/s11440-019-00881-z
41. Sun XH, Miao LC, Tong TZ, Wang CC (2019) Study of the effect
of temperature on microbially induced carbonate precipitation.
Acta Geotech 14:627–638. https://doi.org/10.1007/s11440-0180758-y
489
42. Terzis D, Laloui L (2019) Cell-free soil bio-cementation with
strength, dilatancy and fabric characterization. Acta Geotech
14(3):639–656
43. Tsesarsky M, Gat D, Ronen Z (2016) Biological aspects of
microbial-induced calcite precipitation. Environ Geotech
5(2):69–78
44. Wang XR, Tao JL (2019) Polymer-modified microbially induced
carbonate precipitation for one-shot targeted and localized soil
improvement. Acta Geotech 14:657–671
45. Wen KJ, Li Y, Amini F, Li L (2020) Impact of bacteria and
urease concentration on precipitation kinetics and crystal morphology of calcium carbonate. Acta Geotech 15:17–27
46. Whiffin VS, Van Paassen LA, Harkes MP (2007) Microbial
carbonate precipitation as a soil improvement technique.
Geomicrobiol J 24(5):417–423
47. Wu CZ, Chu J, Cheng L, Wu SF (2019) Biogrouting of aggregates using premixed injection method with or without pH
adjustment. J Mater Civ Eng 31(9):06019008
48. Wu CZ, Chu J, Wu SF, Cheng L, van Paassen LA (2019)
Microbially induced calcite precipitation along a circular flow
channel under a constant flow condition. Acta Geotech
14:673–683
49. Yasuhara H, Neupane D, Hayashi K, Okamura M (2012)
Experiments and predictions of physical properties of sand
cemented by enzymatically-induced carbonate precipitation.
Soils Found 52(3):539–549
50. Zita A, Hermansson M (1994) Effects of ionic strength on bacterial adhesion and stability of flocs in a wastewater activated
sludge system. Appl Environ Microbiol 60(9):3041–3048
Publisher’s Note Springer Nature remains neutral with regard to
jurisdictional claims in published maps and institutional affiliations.
123
