A. Teleskop B. Mount

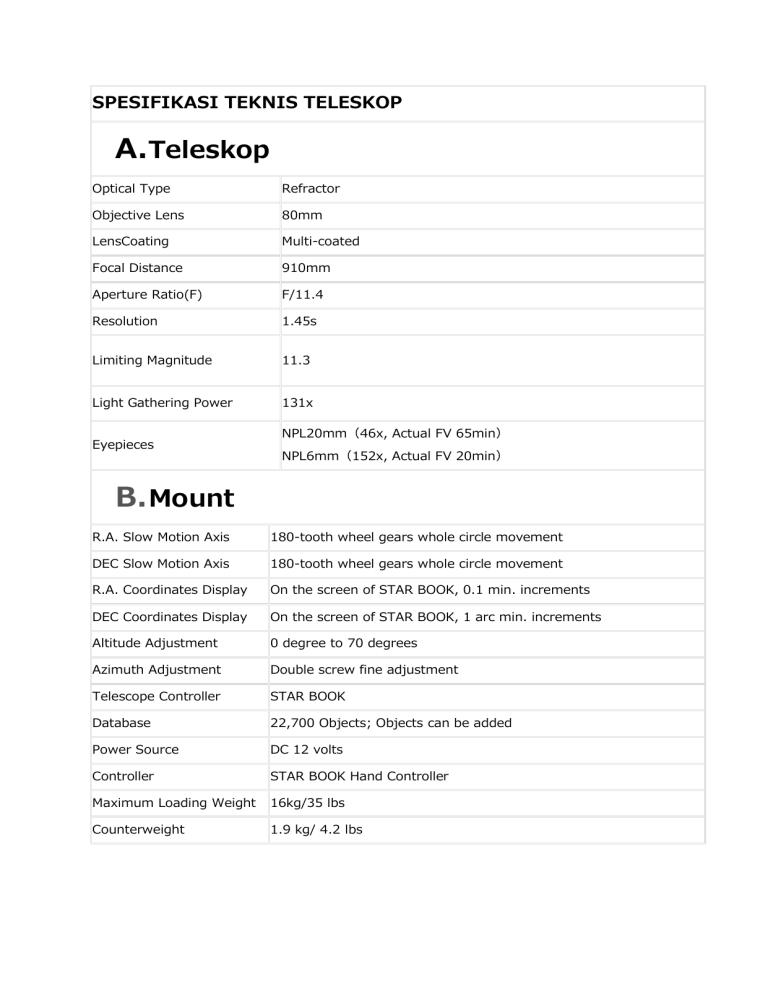

SPESIFIKASI TEKNIS TELESKOP
A.Teleskop
Optical Type
Refractor
Objective Lens
80mm
LensCoating
Multi-coated
Focal Distance
910mm
Aperture Ratio(F)
F/11.4
Resolution
1.45s
Limiting Magnitude
11.3
Light Gathering Power
131x
Eyepieces
NPL20mm（46x, Actual FV 65min）
NPL6mm（152x, Actual FV 20min）
B. Mount
R.A. Slow Motion Axis
180-tooth wheel gears whole circle movement
DEC Slow Motion Axis
180-tooth wheel gears whole circle movement
R.A. Coordinates Display
On the screen of STAR BOOK, 0.1 min. increments
DEC Coordinates Display
On the screen of STAR BOOK, 1 arc min. increments
Altitude Adjustment
0 degree to 70 degrees
Azimuth Adjustment
Double screw fine adjustment
Telescope Controller
STAR BOOK
Database
22,700 Objects; Objects can be added
Power Source
DC 12 volts
Controller
STAR BOOK Hand Controller
Maximum Loading Weight
16kg/35 lbs
Counterweight
1.9 kg/ 4.2 lbs
C. Tripod
Material・Type
Large Hexagonal Aluminum 2-Step Adjustable
Size
Length 81⇔130cm
Attachment
SX half pillar
Termasuk:
1. Aluminium Case untuk Teleskop
2. Aluminium Case untuk Mounting
3. Carrying bag untuk tripod dan half pillar
4. Cigarette LighterPlug – Sphinx
5. A/C Adapter 12V/3A
6. Solar filter untuk teleskop berdiameter 90 mm
RANGKA PANGGUNG SIDANG SEMU
Keterangan:
Panjang = 4 m
Lebar = 2 m
Tinggi = 25 cm
Bahan = Kayu Rep 5/7, dasar Tripleks 18 mil/2cm dan Alas Karpet
