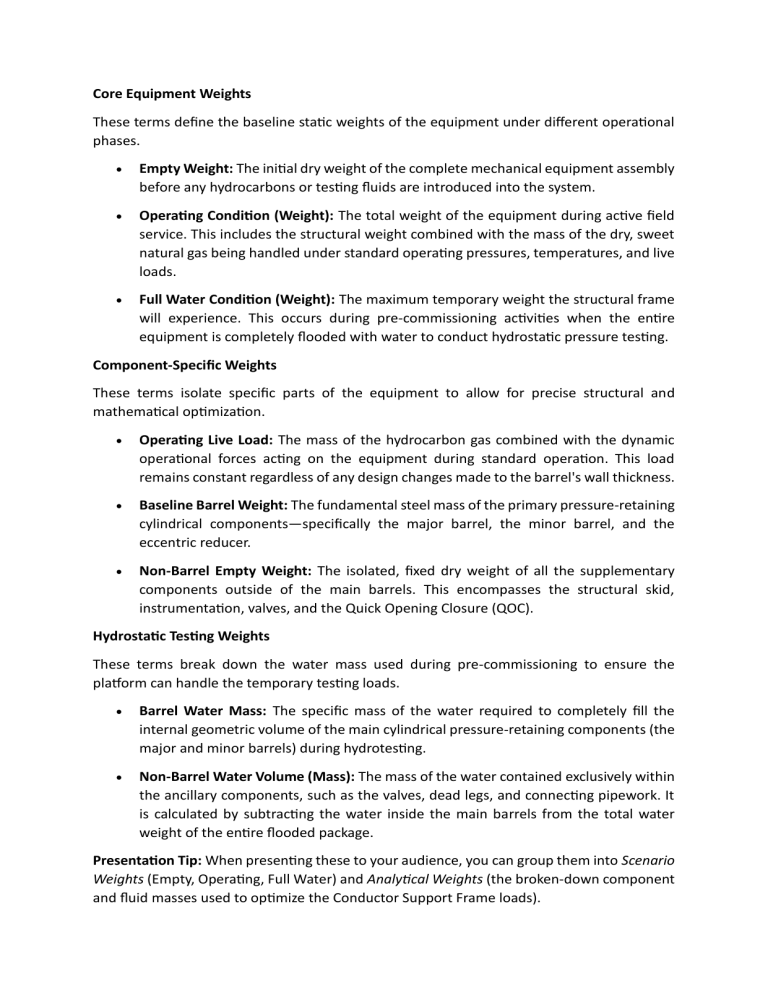

Core Equipment Weights These terms define the baseline static weights of the equipment under different operational phases. Empty Weight: The initial dry weight of the complete mechanical equipment assembly before any hydrocarbons or testing fluids are introduced into the system. Operating Condition (Weight): The total weight of the equipment during active field service. This includes the structural weight combined with the mass of the dry, sweet natural gas being handled under standard operating pressures, temperatures, and live loads. Full Water Condition (Weight): The maximum temporary weight the structural frame will experience. This occurs during pre-commissioning activities when the entire equipment is completely flooded with water to conduct hydrostatic pressure testing. Component-Specific Weights These terms isolate specific parts of the equipment to allow for precise structural and mathematical optimization. Operating Live Load: The mass of the hydrocarbon gas combined with the dynamic operational forces acting on the equipment during standard operation. This load remains constant regardless of any design changes made to the barrel's wall thickness. Baseline Barrel Weight: The fundamental steel mass of the primary pressure-retaining cylindrical components—specifically the major barrel, the minor barrel, and the eccentric reducer. Non-Barrel Empty Weight: The isolated, fixed dry weight of all the supplementary components outside of the main barrels. This encompasses the structural skid, instrumentation, valves, and the Quick Opening Closure (QOC). Hydrostatic Testing Weights These terms break down the water mass used during pre-commissioning to ensure the platform can handle the temporary testing loads. Barrel Water Mass: The specific mass of the water required to completely fill the internal geometric volume of the main cylindrical pressure-retaining components (the major and minor barrels) during hydrotesting. Non-Barrel Water Volume (Mass): The mass of the water contained exclusively within the ancillary components, such as the valves, dead legs, and connecting pipework. It is calculated by subtracting the water inside the main barrels from the total water weight of the entire flooded package. Presentation Tip: When presenting these to your audience, you can group them into Scenario Weights (Empty, Operating, Full Water) and Analytical Weights (the broken-down component and fluid masses used to optimize the Conductor Support Frame loads).
